SUPERLUX DRK681 8pc PROFESSIONAL DRUM MICROPHONE SET



SUPERLUX DRK681  8pc PROFESSIONAL DRUM MICROPHONE SET



The Superlux DRK681 comprises of eight condenser microphones. The E100 in the set is designed for low frequency instrument pick up using boundary technology. There are four PRA383 miniature gooseneck microphones that can attach to tom toms, snare or any instrument utilising the combined clip. There are also three E109 pencil type condenser microphones for stand mounting to pick up high frequency instruments such as hi-hat, cymbals or brass / stringed instruments. All these microphones work with 9-52Vdc phantom power directly or through the supplied adaptors.

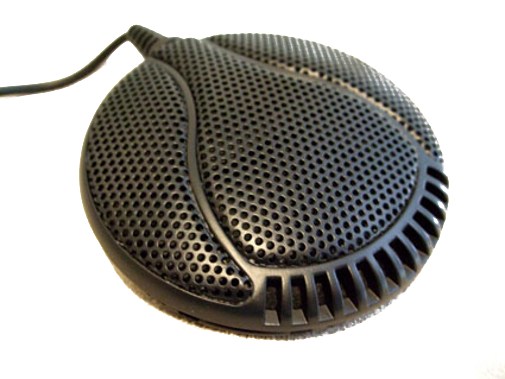

E100 Kick Boundary Mic

  • Type:  Back electret condenser

  • Polar Pattern:  Half-Cardioid

  • Frequency response:  30 to 18,000 Hz

  • Sensitivity at 1KHz open circuit voltage:  -60dBV/Pa (1mV/Pa)

  • Rated impedance:  600 ohms

  • Minimum load impedance:  2K ohms

  • Equivalent noise level:  Less than 24dB, A-Weighted

  • Max. SPL (1K ohm load) 149dB SPL (THD<1% 1kHz)

  • Dynamic range (1K ohm load):  125dB

  • Power supply: 9- 52V phantom power

  • Current consumption:  4mA

  • Connector:  3 pin male XLR type

  • Finish:  Black painted finish

  • Net weight:  270 grams (9.5oz)

PRA383 Gooseneck Mic

  • Type:  Back electret condenser

  • Polar Pattern:  Cardioid

  • Frequency response:  40 to 18,000 Hz

  • Sensitivity at 1KHz open circuit voltage:  -42dBV/Pa (8mV/Pa)

  • Rated impedance:  200 ohms

  • Minimum load impedance:  1K ohms

  • Equivalent noise level:  Less than 23dB, A-Weighted

  • Max. SPL (1K ohm load) 137dB SPL (THD<1% 1kHz)

  • Dynamic range (1K ohm load):  114dB

  • Power supply: 9- 52V phantom power

  • Current consumption:  2.5mA

  • Connector:  3 pin male XLR type

  • Finish:  Black painted finish

  • Net weight:  160 grams (4.2oz)

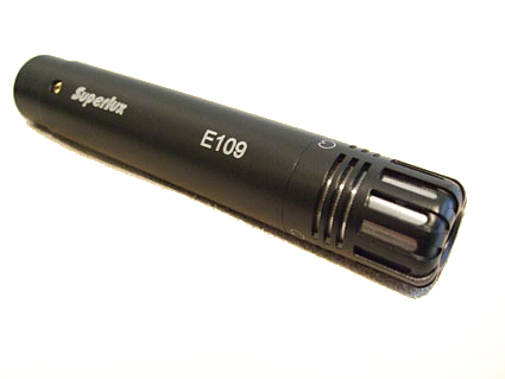

E109 Pencil Condenser Mic

  • Type:  Back electret condenser

  • Polar Pattern:  Cardioid

  • Frequency response:  40 to 20,000 Hz

  • Sensitivity at 1KHz open circuit voltage:  -43dBV/Pa (7.1mV/Pa)

  • Rated impedance:  200 ohms

  • Minimum load impedance:  1K ohms

  • Equivalent noise level:  Less than 22dB, A-Weighted

  • Max. SPL (1K ohm load) 137dB SPL (THD<1% 1kHz)

  • Dynamic range (1K ohm load):  115dB

  • Power supply: 9- 52V phantom power

  • Current consumption:  3.5mA

  • Connector:  3 pin male XLR type

  • Finish:  Black painted finish

  • Net weight:  120 grams (4.2oz)



£
